Description
OMP plumbed in fire systems – New updated models
CONTACT US NOW TO PRE – ORDER A SYSTEM
email – sales@racegear.com.au to place a pre-order for a system.

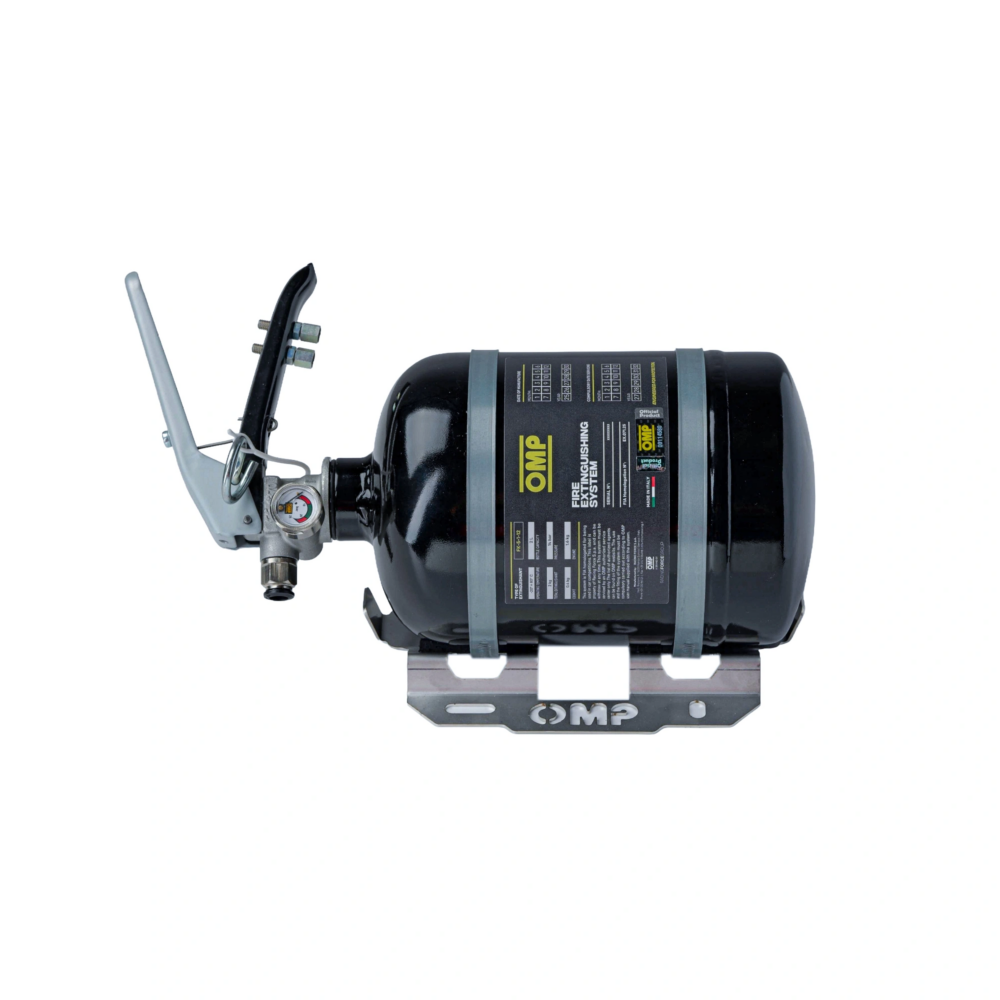

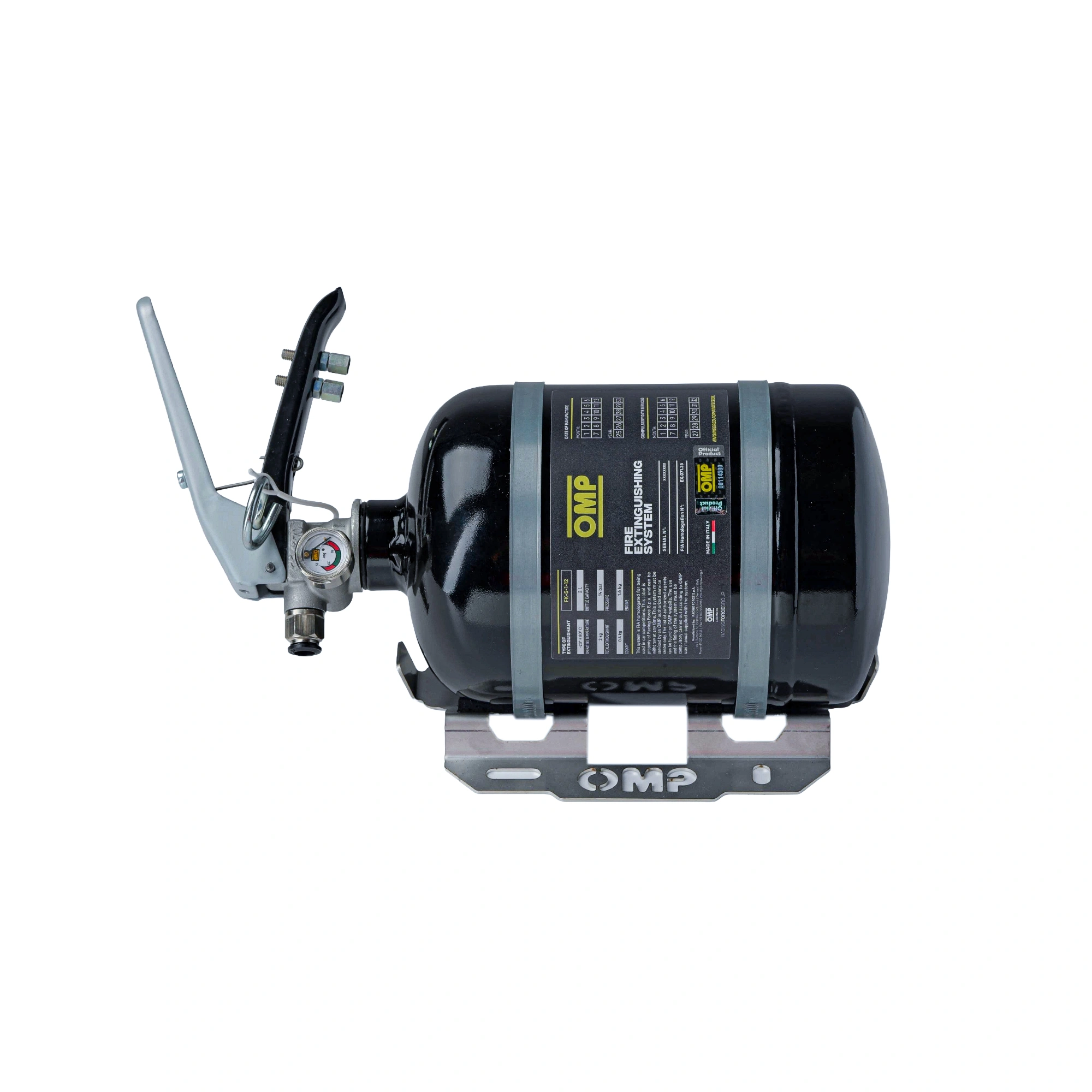

Mechanical fire system OMP 2Kg
Suitable for electric and hybrid cars
Fire extinguishing system manually activated engineered for saloon cars requiring a durable and high-performance fire suppression system. CMSST6 2KG system make use of 2KG FK-5-1-12 clean agent. The fluid is stored in a 210 mm steel bottle, delivers fire suppression performance through a precision-engineered nozzle and tubing layout to maximize performance. Mechanical valve in aluminium. Fixing brackets, clamps, tubing and connection included.
FK‐5‐1‐12 is a colorless, clear liquid. It is stored as a liquid and dispensed into the hazard as an electrically non‐conductive gaseous vapor that is clear and does not obscure vision. It leaves no residue and has acceptable toxicity for use in occupied spaces at design concentration. FK-5-1-12 extinguishes fires by removing heat. All fires need heat, oxygen, and a fuel source to continue to burn. By removing any of these three elements, you can extinguish the fire.
Bottle length
210mm
Total length
303mm
Total weight
3,55kg ±5%
Parts included
- 2x Aluminium piping 8mm [CD0-0323-A01]
- 1x Aluminium piping 6mm [CD0-0323-B01]
- 2x Sheath 10mm [CD0-0324-A01]
- 1x Sheath 8mm [CD0-0324-A03]
- 7x Atomizer nozzle – 5 for engine and 2 for cockpit [CD0-0393-A01]
- 3x 8mm T connection [CD0-0392-A02]
- 1x 6mm T connection [CD0-0392-A03]
- 2x 8mm 90° connection [CD0-0391-A02]
- 1x 6mm 90° connection [CD0-0391-A03]
- 1x Pipe reduction 6-8mm [CD0-0399]
- 2x 8mm T connection [CD0-0390-B01]
- 1x Bracket and clamps [CD0-0561]
- 1x Pull handle cable 3,2m [CD0-0335]
- 1x Pull handle cable 2m [CD0-0336]
- 2x Sticker [XMC-855]
